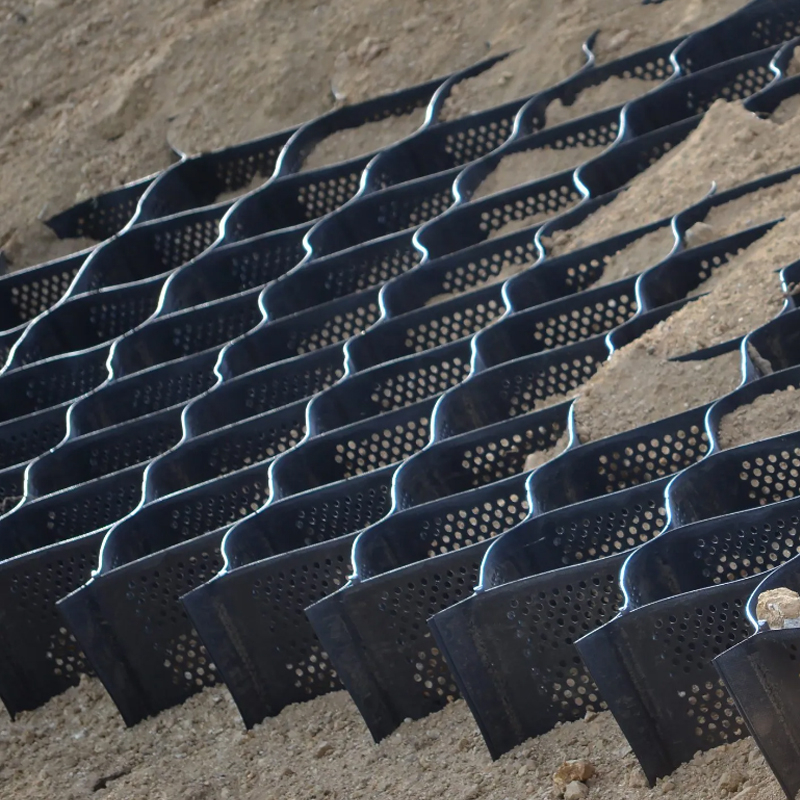

HDPE Geocell Honeycomb Plastic Grid for Driveway Gravel Reinforcement, Road Base Stabilization, And Slope Erosion Control

Product Overview
HDPE Geocell is a flexible, three-dimensional cellular confinement system made from high-density polyethylene (HDPE) strips, ultrasonically welded together to form a strong, honeycomb-like structure. Once expanded and filled with aggregate, sand, soil, or concrete, it creates a stabilized layer ideal for load-bearing and erosion control.

Applications
HDPE Geocell is a cost-effective and efficient solution for:

Road and railway subgrade reinforcement

Retaining wall construction

Slope and embankment erosion control

Channel protection and stormwater management

Load support in weak soil conditions

✅ Why Choose Geocell?
In many infrastructure projects—such as roads, railways, and slope stabilization—subgrade soils are soft or weak, leading to costly and time-consuming reinforcement solutions. Geocell offers an economical alternative. When placed directly on subgrade soils and filled with readily available granular materials, it improves the ground's load-bearing capacity without the need for deep excavation or expensive fill materials.

✅ How Geocell Works
When infilled and compacted, the geocell system forms a composite structure with improved mechanical and geotechnical properties:

3D Confinement: Limits lateral movement of soil particles, enhancing stability

Load Distribution: Creates a stiff slab effect, spreading loads over a wider area

Increased Shear Strength: Cell walls provide high lateral resistance

Improved Bearing Capacity: Reduces soil deformation and punching through soft subgrades

Passive Resistance: Adjacent cells provide added confinement, further enhancing support
