| Raw material : | |
|---|---|
| Length: | |
| width: | |
| Color: | |
| Quantity: | |
ZL-TGB-CS
zhongloo
Non Woven Filter Cloth High Puncture Resistance Geotextile for Drainage Reinforcement Earthwork
Filament Fiber Nonwoven Geotextile, also known as continuous filament geotextile, is manufactured by the process of needle punching using high-quality polyester (PET) or polypropylene (PP) virgin chips. The continuous filaments are entangled together to form a robust, dimensionally stable, and permeable fabric.
This geotextile offers excellent mechanical properties, including high tensile strength, low elongation, and superior resistance to UV radiation, chemical corrosion, and biological degradation. It ensures effective filtration, separation, reinforcement, and drainage functions in various geotechnical and civil engineering applications.
Widely used in road construction, railway foundations, landfills, tunnel protection, slope reinforcement, and water conservancy projects, long fiber geotextile enhances soil stability, extends project lifespan, and reduces maintenance costs.
Zhongloo China offers premium-quality multifilament woven geotextile fabric made from high-strength polypropylene (PP) or polyester (PET) long fibers. Engineered for superior tensile strength, durability, and chemical resistance, this filament woven geotextile is ideal for soil reinforcement, separation, filtration, and drainage applications in road construction, retaining walls, embankments, landfills, and other geotechnical projects.
Designed to perform in demanding environments, our woven geotextiles provide excellent dimensional stability, UV resistance, and long-term performance. With competitive factory-direct pricing, customizable specifications, and reliable quality, Zhongloo is your trusted supplier of geosynthetic products and civil engineering solutions.
Buy high-strength woven geotextile fabric directly from Zhongloo China – professional manufacturer, fast delivery, and global export support.
1.High Strength – Superior tensile strength in all directions compared to other needle-punched nonwoven fabrics of the same weight.
2.UV Resistance – Highly resistant to ultraviolet light, ensuring long-term durability. 3.Extreme Temperature Resistance – Withstands temperatures up to 230°C while maintaining structural integrity.
6.Ductility – Excellent elongation under stress, adapting to uneven and irregular substrates.
| Non-woven Geotextile Technical Parameter (GB standard) | |||||||||
| Item | unit | Standard Specification | |||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | ||
| Thickness≥ | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 |
| width Deciation | % | 0.5 | |||||||
| Breaking strength | KN/M | 2.50 | 4.50 | 6.50 | 8.00 | 9.50 | 11.00 | 12.50 | 14.00 |
| Breaking Elongation | % | 25-100 | |||||||
| Weight Tolerance | g/m² | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 |
| CBR Tear Strength≥ | KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| Tear Strength≥ | KN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 |
| Vertical Permeability | N/5cm | Kx(10﹣¹-10﹣³) | |||||||
| EOS 090 | mm | 0.07-0.2 | |||||||

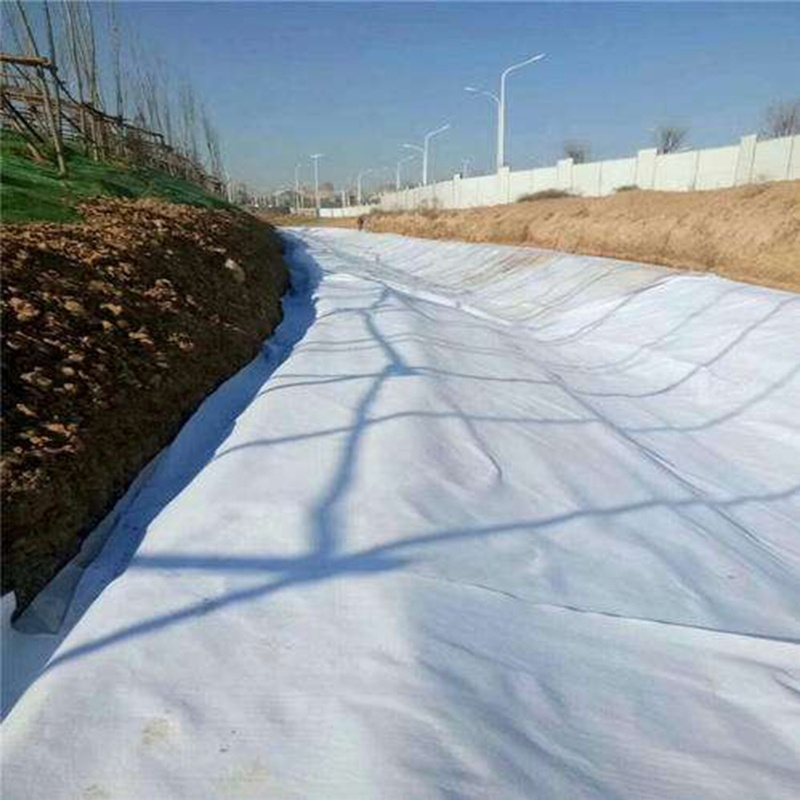

Railway subgrade drainage
Highway roadbed reinforcement
Agricultural transformation of saline-alkali land
Q：Can you send samples?
A：Yes，we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan.It is a professiona lmanufacturer of geomembrane，geotextile，geogrid and other products.So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A: Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management，products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
Non Woven Filter Cloth High Puncture Resistance Geotextile for Drainage Reinforcement Earthwork
Filament Fiber Nonwoven Geotextile, also known as continuous filament geotextile, is manufactured by the process of needle punching using high-quality polyester (PET) or polypropylene (PP) virgin chips. The continuous filaments are entangled together to form a robust, dimensionally stable, and permeable fabric.
This geotextile offers excellent mechanical properties, including high tensile strength, low elongation, and superior resistance to UV radiation, chemical corrosion, and biological degradation. It ensures effective filtration, separation, reinforcement, and drainage functions in various geotechnical and civil engineering applications.
Widely used in road construction, railway foundations, landfills, tunnel protection, slope reinforcement, and water conservancy projects, long fiber geotextile enhances soil stability, extends project lifespan, and reduces maintenance costs.
Zhongloo China offers premium-quality multifilament woven geotextile fabric made from high-strength polypropylene (PP) or polyester (PET) long fibers. Engineered for superior tensile strength, durability, and chemical resistance, this filament woven geotextile is ideal for soil reinforcement, separation, filtration, and drainage applications in road construction, retaining walls, embankments, landfills, and other geotechnical projects.
Designed to perform in demanding environments, our woven geotextiles provide excellent dimensional stability, UV resistance, and long-term performance. With competitive factory-direct pricing, customizable specifications, and reliable quality, Zhongloo is your trusted supplier of geosynthetic products and civil engineering solutions.
Buy high-strength woven geotextile fabric directly from Zhongloo China – professional manufacturer, fast delivery, and global export support.
1.High Strength – Superior tensile strength in all directions compared to other needle-punched nonwoven fabrics of the same weight.
2.UV Resistance – Highly resistant to ultraviolet light, ensuring long-term durability. 3.Extreme Temperature Resistance – Withstands temperatures up to 230°C while maintaining structural integrity.
6.Ductility – Excellent elongation under stress, adapting to uneven and irregular substrates.
| Non-woven Geotextile Technical Parameter (GB standard) | |||||||||
| Item | unit | Standard Specification | |||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | ||
| Thickness≥ | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 |
| width Deciation | % | 0.5 | |||||||
| Breaking strength | KN/M | 2.50 | 4.50 | 6.50 | 8.00 | 9.50 | 11.00 | 12.50 | 14.00 |
| Breaking Elongation | % | 25-100 | |||||||
| Weight Tolerance | g/m² | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 |
| CBR Tear Strength≥ | KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| Tear Strength≥ | KN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 |
| Vertical Permeability | N/5cm | Kx(10﹣¹-10﹣³) | |||||||
| EOS 090 | mm | 0.07-0.2 | |||||||
Railway subgrade drainage
Highway roadbed reinforcement
Agricultural transformation of saline-alkali land
Q：Can you send samples?
A：Yes，we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan.It is a professiona lmanufacturer of geomembrane，geotextile，geogrid and other products.So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A: Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management，products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
