| Thickness of Geomembrane: | |
|---|---|
| size: | |
| Color: | |
| Material: | |
| Quantity: | |
ZL-ZGM
Zhongloo

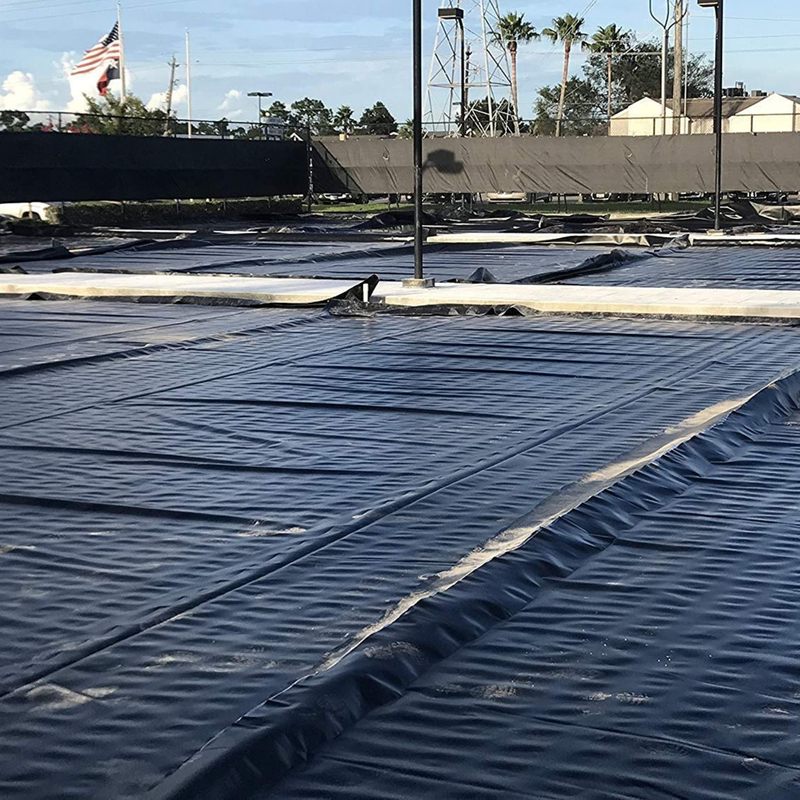

Geomembranes are being used in environmental, hydraulic, transportation, and oil and gas applications as well as the waste industry. The most common type are the continuous polymeric sheets. When larger geomembranes are needed, they are thermally or chemically melted together at the seams for strength and durability. The size of the geomembrane is completely customizable, so they are can be as small as a backyard fish pond or as large as a football field if necessary.
As liners for potable or reserve water (e.g., safe shutdown of nuclear facilities)
As fish pond liners
As liners for waste liquids (e.g., sewage sludge), radioactive or hazardous waste liquid
As liners for the agriculture industry
As liners for various waste conveyance canals
As liners for primary, secondary, and/or tertiary solid-waste landfills and waste piles
As linings for emergency spillways
As waterproofing liners within tunnels and pipelines
To contain and transport liquids in trucks
To contain and transport potable water and other liquids in the ocean
Beneath highways to prevent pollution from deicing salts
Beneath and adjacent to highways to capture hazardous liquid spills.
Basically, geomembranes are used wherever loss of material cannot be allowed, be that clean water, wastewater, vapor, soil, hazardous materials, or any other substance that doesn't need to escape its designated space. Because flowing, pooling, frozen, and standing liquids (and even vapors) can be so devastating if not managed properly, these geomembranes have allowed industries to continue to develop and support many more projects than previously done before.
HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)
| Spec Properties | Test method ASTM | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation | D 6693 Type IV | 8 kN/m 14kN/m 12% 700% | 11 kN/m 20kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 18 kN/m 33 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29 kN/m 53 kN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT | D 3895 D 5885 | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. |
Anhui Zhonglu Engineering Materials Co.,ltd ,with a registered capital of 52 milion,is located in hefei China. It is a high-tech enterprise integrating the production, development and sales of new geosyntheticsuch as geotextile, geomembrane geogrid, warp knitted composite, geonet, waterproof and dranage board.
Packed in woven geotextile and strength belt or PE film Or packed according to customers' requirements such as mark the company Logo (Export standard package)
