Rough Surface Artificial Fish Pond Geomembrane Piscine An Geomembrane Pond Liner Geomembrane

1. Corrosion resistance

2. good water resistance

3. Long lasting

4. Specifications can be customized

Color:
Model Number:
Thickness:
Width:
Length:
Package:
Standard:
Availability:
Quantity:
  • geomembrane

  • zhongloo

  • geomembrane

Rough Surface Artificial Fish Pond Geomembrane Piscine An Geomembrane Pond Liner Geomembrane

contact informations


Products Description

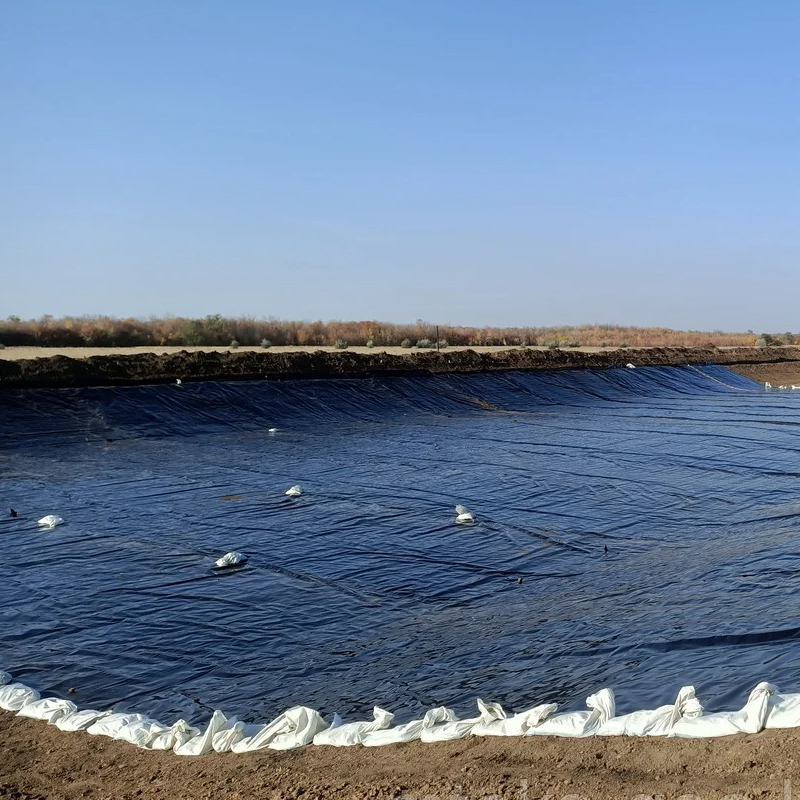

Pond Liner Geomembrane is the kind of HDPE geomembrane liner which is the ideal geosynthetic material used as the anti seepage lining system for fish farm pond. The pond liner geomembrane has good waterproof properties to preventing water from leaking into the surrounding sediment. Most types of ponds will require a pond liner to be installed, as well as a quality underlayment for pond liner support. High quality pond liner geomembrane is the HDPE pond liner which is  is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our pond liner geomembrane with excellent resistance to UV radiation and is suitable for exposed conditions. HDPE geomembrane pond liner is also specially engineered to withstand general wear and tear, as well as impact and pressure which can cause leaks. HPDE pond liner is more suited to rougher sediment, as it’s very durable and strong which provides long-lasting protection from leaks and damage. The fish pond lining material can also be used for shrimp ponds, landfill sites, tailings storage sites, canal seepage prevention, dam seepage prevention, and subway engineering.


Features

  • Good physical and mechanic performance

  • High tearing resistance, strong deformation adaptability

  • Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance

  • Good adaptability to high and low temperature, non-toxicity, long service life

  • Good waterproof, drainage, anti-seepage and damp proof effects

  • Complete width and thickness specifications, low cost and easy installation.


Applications

1. Environmental protection and sanitation like waste landfill, sewage treatment, industrial waste, etc.

2. Water conservancy such as anti-seepage, leakage blockage and reinforcement of river, etc.

3. Municipal projects such as underground project, subway, planting roof, etc.

4. Landscape garden such as artificial river, bottom lining, damp-proof, etc.

5. Mine industry such as bottom lining and anti-seepage

6. Traffic facilities such as road foundation and anti-seepage of subway and culvert.

7. Agriculture such as anti-seepage of ditch, channel, reservoir, pool and irrigation system.



The Geomembrane is Waterproof and impermeable UV resistance,High tearing resistance ,Puncture-resisting,Non toxic,Long life.Root resistance.
rough surface geomembrane rough surface geomembrane

Specification


Rough Surface Artificial Fish Pond Geomembrane Piscine An Geomembrane Pond Liner Geomembrane


Product name HDPE /LDPE /lldpe geomembrane/pond liner
Usage Waterproof and seepage control project
Color Black/white/blue/double color
Material HDPE/LDPE/LLDPE/EVA
Type HDPE
Thickness 0.1mm-3.0m 1m-8m in roll width, the length as client's request
Service valid term More than 10 years!
Payment term L/C D/A D/P T/T Western Union Money Gram
Packing detail Packing in woven bags. Keep it away from fire.
Property Good flexible ,UV treated,Excellent environmental stress cracking resistance property,Low temperature resistance, corrosion resistance, aging resistance.
Specific Use Municioal environmental project, water conservancy projects,Landfill cap, mining heap leach pads,Pond liner, canal linings, tank,linings, raw water treatment reservoirs, retention ponds,Waste water treatment lagoon, secondary containment



Geomembrane Technical Parameter (GB standard)
Spec
Properties
GMS0.5
GMS0.75
GMS1.0
GMS1.25
GMS1.5
GMS2.0
GMS2.5
Thickness
0.5mm
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
2.5mm
Tensile Properties
(each direction) (≥)
.yield strength
.break strength
.yield elongation
.break elongation


7KN/m
10KN/m
--
600%


10KN/m
15KN/m
--
600%


13KN/m
20KN/m
11%
600%


16KN/m
25KN/m
11%
600%


20KN/m
30KN/m
11%
600%


26KN/m
40KN/m
11%
600%


33KN/m
50KN/m
11%
600%
Density(≥)
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
Puncture Restistance (≥)
120N
180N
240N
300N
360N
480N
600N
Carbon Black Content
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
Carbon black Dispersion
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Tear Resistance (≥)
56N
84N
115N
140N
170N
2255N
280N
Oxidative Induction Time(OIT)
Standare OIT(≥)

60min.

60min.

60min.

60min.

60min.

60min.

60min.



WORKSHOP
geomembrane workshop




HDPE Geomembrane Application:
(1)Aquaculture:
       Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.

(2)Landfill:
      HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.

(3)Water Treatment System :
       HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4)Mining:
         HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
