1. Corrosion resistance
2. good water resistance
3. Long lasting
4. Specifications can be customized
| Color: | |
|---|---|
| Model Number: | |
| Thickness: | |
| Width: | |
| Length: | |
| Package: | |
| Standard: | |
| Availability: | |
| Quantity: | |
geomembrane
zhongloo
geomembrane
Products Description
Geomembranes are flexible sheet materials typically used as barriers to the passage of gases, liquids, or solids that combine long-term durability with strength, flexibility, and chemical resistance providing an impermeable barrier for a wide variety of applications.
HDPE smooth geomembranes are the preferred products for lining projects requiring low permeability, exceptional chemical and ultraviolet resistance properties, which makes them extremely cost-effective for many applications.
Specification
HDPE /LDPE /lldpe Geomembrane/pond Liner Price
| Product name | HDPE /LDPE /lldpe geomembrane/pond liner |
| Usage | Waterproof and seepage control project |
| Color | Black/white/blue/double color |
| Material | HDPE/LDPE/LLDPE/EVA |
| Type | HDPE |
| Thickness | 0.1mm-3.0m 1m-8m in roll width, the length as client's request |
| Service valid term | More than 10 years! |
| Payment term | L/C D/A D/P T/T Western Union Money Gram |
| Packing detail | Packing in woven bags. Keep it away from fire. |
| Property | Good flexible ,UV treated,Excellent environmental stress cracking resistance property,Low temperature resistance, corrosion resistance, aging resistance. |
| Specific Use | Municioal environmental project, water conservancy projects,Landfill cap, mining heap leach pads,Pond liner, canal linings, tank,linings, raw water treatment reservoirs, retention ponds,Waste water treatment lagoon, secondary containment |
| Geomembrane Technical Parameter (GB standard) | |||||||
| Spec Properties | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
| Tensile Properties (each direction) (≥) .yield strength .break strength .yield elongation .break elongation | 7KN/m 10KN/m -- 600% | 10KN/m 15KN/m -- 600% | 13KN/m 20KN/m 11% 600% | 16KN/m 25KN/m 11% 600% | 20KN/m 30KN/m 11% 600% | 26KN/m 40KN/m 11% 600% | 33KN/m 50KN/m 11% 600% |
| Density(≥) | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc |
| Puncture Restistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
| Carbon Black Content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon black Dispersion | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) |
| Tear Resistance (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
| Oxidative Induction Time(OIT) Standare OIT(≥) | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. |

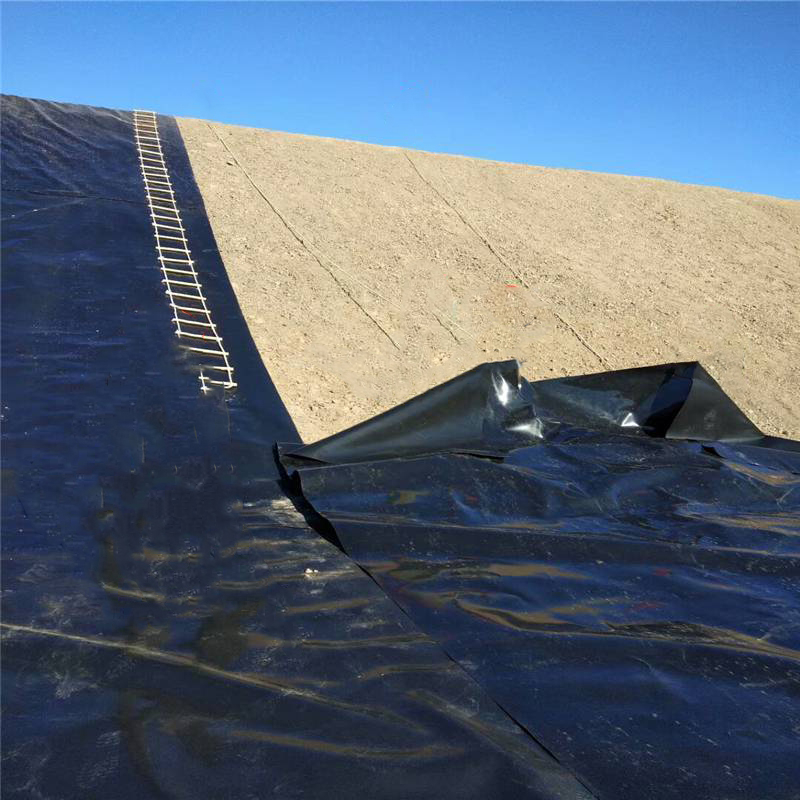

Our Project Cases
