Grass Protection Mats HDPE Plastic Grid Pavers for Ground Reinforcement System

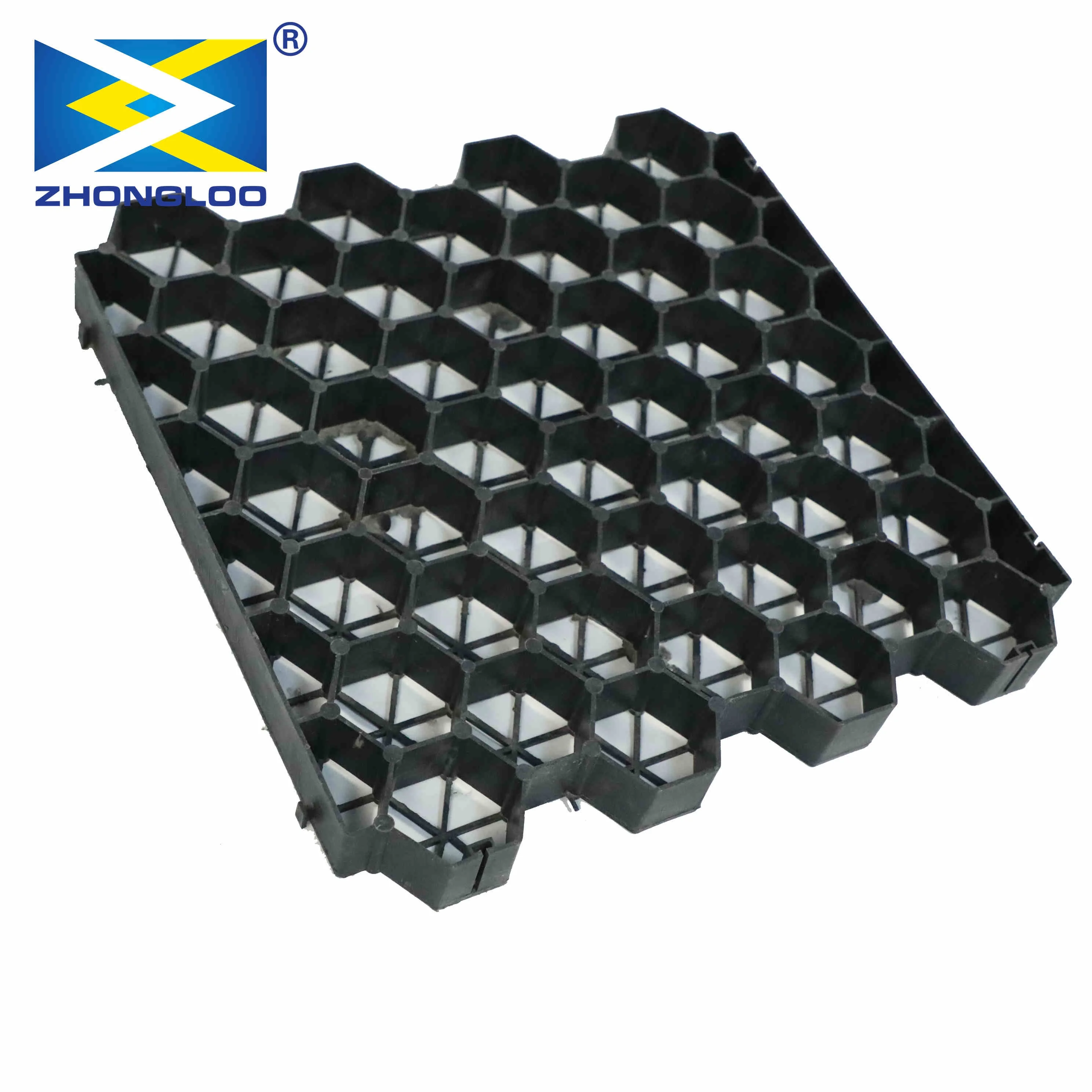

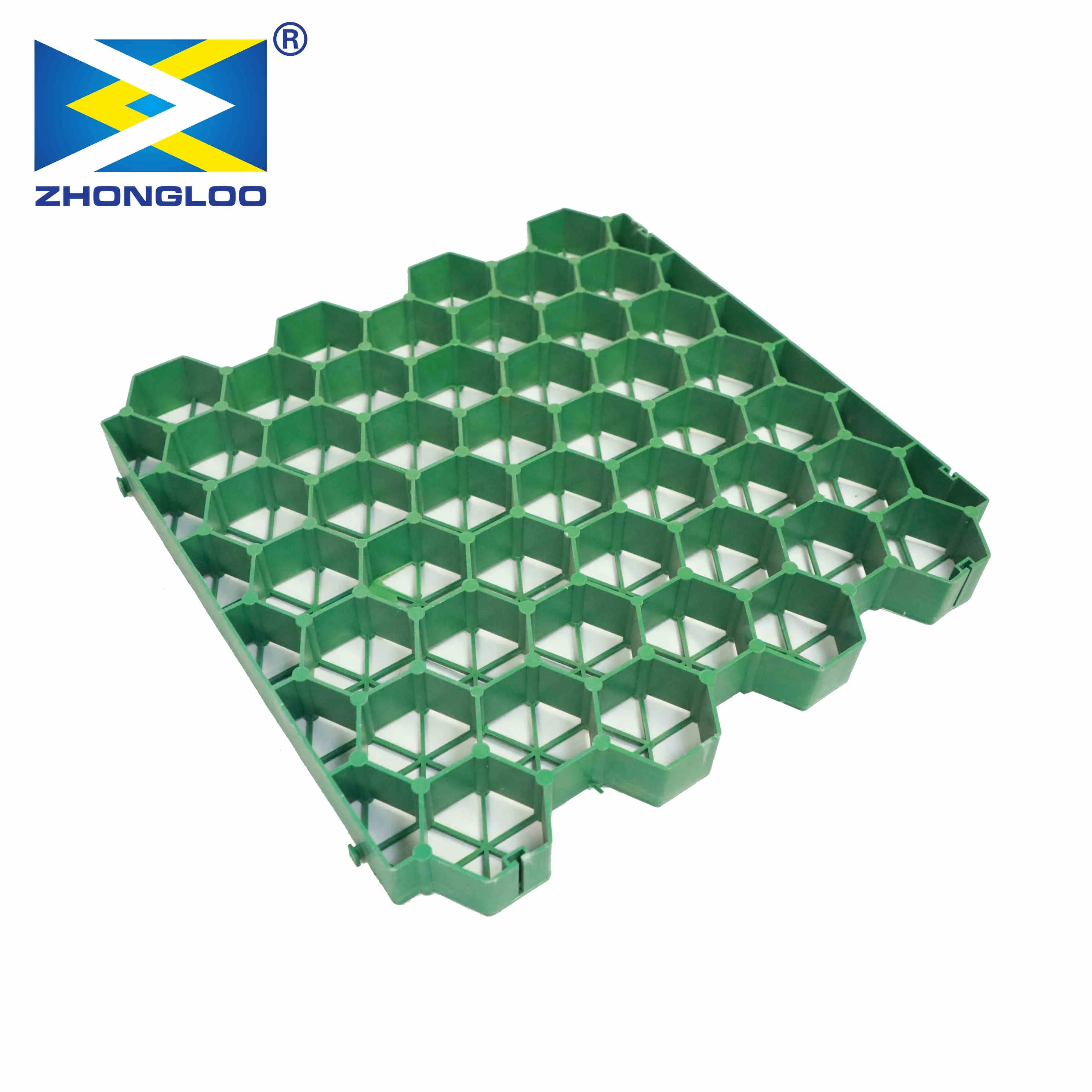

The grass grid is manufactured from high-quality HDPE material using high-pressure injection molding technology. This process forms a beehive-like, continuous cellular structure with a three-dimensional layout that provides reliable height, strength, and structural support. Eco-friendly and fully recyclable, the grass grid offers an ideal integration of green landscaping with functional areas such as parking lots, creating a harmonious balance between usability and aesthetics.

It features excellent mechanical properties, including high load-bearing capacity, superior abrasion and impact resistance, as well as outstanding resistance to aging and chemical corrosion. These advantages significantly enhance ground reinforcement performance while reducing long-term maintenance and investment costs.

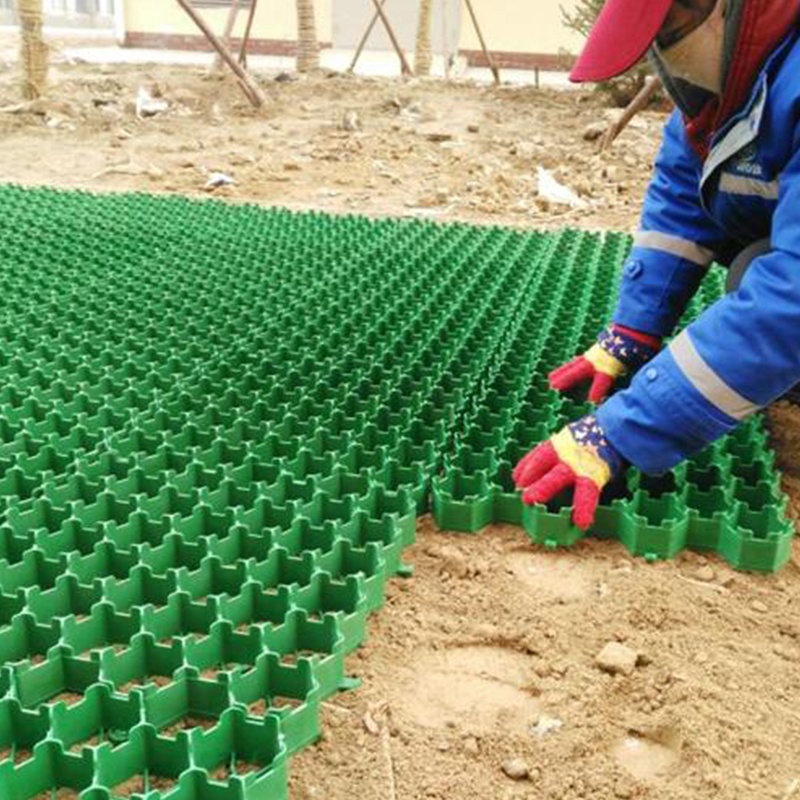

The uniquely designed flat-lapping connection system allows for rapid installation, labor savings, and flexible expansion through telescopic joints, making it an efficient solution for large-scale projects.
Hight:
Raw Material:
Availability:
Quantity:
  • ZL-ZCG

  • zhongloo

HDPE geocell grass grid pavers paver polymer for driveway grid

The grass grid is manufactured from high-quality HDPE material using high-pressure injection molding technology. This process forms a beehive-like, continuous cellular structure with a three-dimensional layout that provides reliable height, strength, and structural support. Eco-friendly and fully recyclable, the grass grid offers an ideal integration of green landscaping with functional areas such as parking lots, creating a harmonious balance between usability and aesthetics.

It features excellent mechanical properties, including high load-bearing capacity, superior abrasion and impact resistance, as well as outstanding resistance to aging and chemical corrosion. These advantages significantly enhance ground reinforcement performance while reducing long-term maintenance and investment costs.

The uniquely designed flat-lapping connection system allows for rapid installation, labor savings, and flexible expansion through telescopic joints, making it an efficient solution for large-scale projects.

Application

1.Grass Parking lots

2.Overflow grass car&bus parking lots
3.Grass Fire Truck Access routes/Fire lanes
4.Handicap access routes
5.Golf cart paths
6.Emergency grass access and parking spaces
7.Residential access and parking spaces

8.Grass driveway and grass shoulder


Advantage
1.Reduce ground reflection, reduce ground heat radiation
2.Reduce the ground acoustic wave transmission, reduce noise pollution.
3.Reduce dust and purify the air
4.Natural leakage of rainwater, soil does not lose, no water phenomenon
5.Free combination and disassembly, reusable

6.Easy to install.


                                                                                                  PRODUCT PARAMETERS

Grass Grid Technical Parameter (GB standard)
Prodcut name
Plastic Grass Grid
Model
GPP-38
GPP-48
GPP-68
size(mm)
500*500*38
500*500*48
500*500*68
525*455*38
Pressure Strength
200ton/sqm-250ton/sqm
Material
HDPE(High-desity polyethylene)
Product Type
Virign material and Recycled Material
Durability
at least 4 years in natural ground of 4
Working Temprature
Apply in temperature of -10℃tp 50℃
Anti HCL
30%x24h,no visible change
Thermal Aging
70ICX24h,no visible change
Anti UV
UPE>30T(UVA)AV


Product description

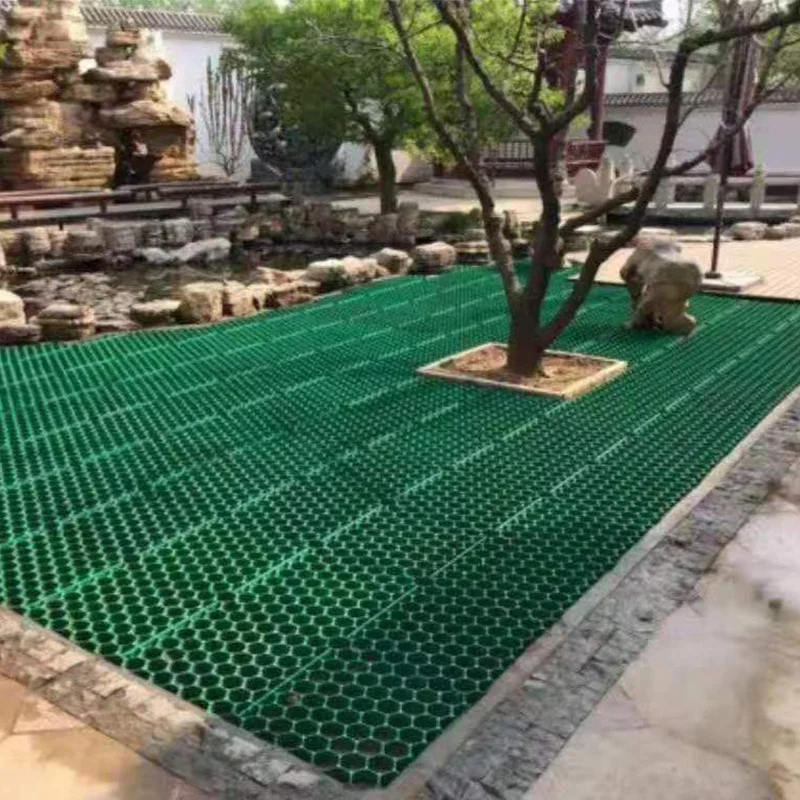

1. Perfect Greening: Grass grids offer 95% grass area, completing green effect could absorb noise,dust, heat and reduce the glare produced by the ground reflection.
2.Save investment: Grass grids combined parking garage and greening.
3.Formation integrity: aunique and strong grass grid snap-lap the whole pavement together into a flat overall, to avoid local depression, suitable for exercise, entertainment and leisure.

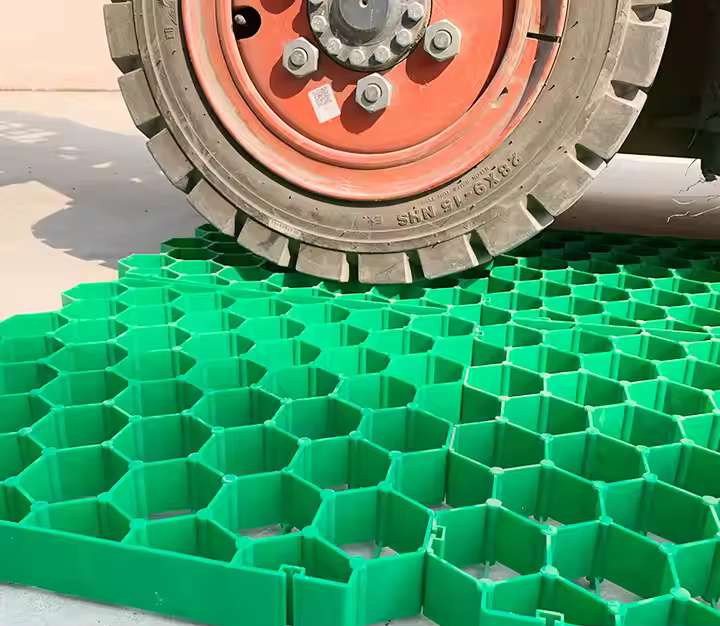

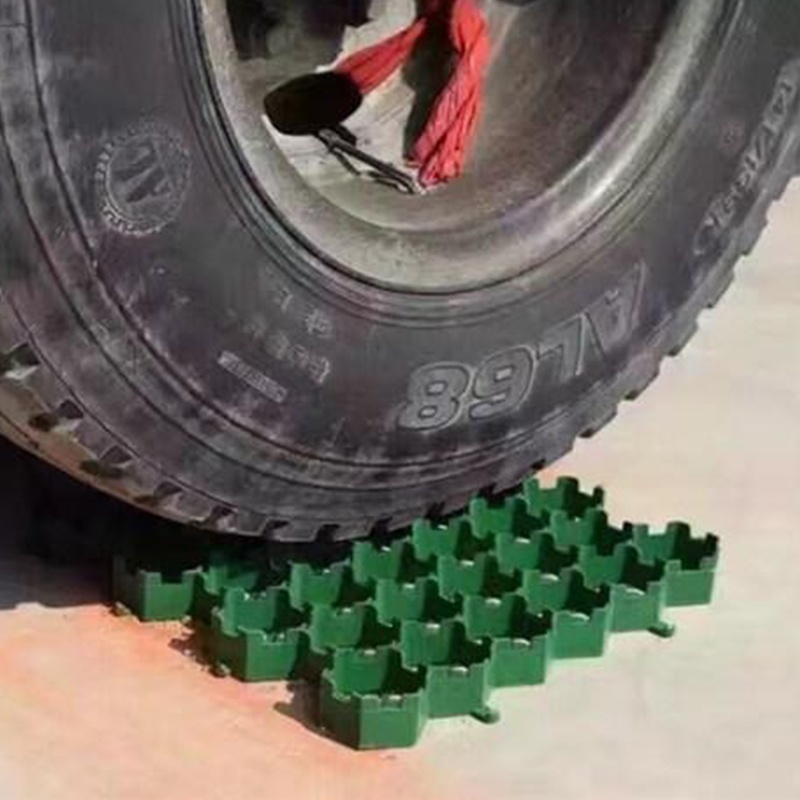

4. High strength and durability: Grass grid using patented technology, the maximum compression capacity of 200 tons/sqm, greater than regulatory requirements of the saving fire plane 32 tons/sqm. It’s stable performance,anti-UV, anti acid corrosion, wear pressure, making the fire exits, fire climb surface into a green surface.
5. Permeability: load-bearing layer of gravel to provide a good permeability function, the excess water into the ground and increase underground water storage to prevent subsidence. It’s
not only could oxygen permeability also can purify the air.
6. Protection of grass: load-bearing layer of gravel to provide a certain amount of water features, enabling the growth of grass,grass can grow to the gravel layer.
7. Water conservation: Grass has water conservation functions to reduce urban water logging.
8. Good weather resistance: can be used for snow riding channel for -40-90 C.
9. Insant lawn effect with minimal labour, eliminate heavy ground & soil preparation


                                                                              FAQ

Q:Can you send samples?

A:Yes, we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan. It is a professional
manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?
A:General within 3-7days after received the deposit.
Q:How to control product quality?
A:Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
