Professional Water Conservancy Engineering Waterproofing Anti-Seepage Composite Geomembrane

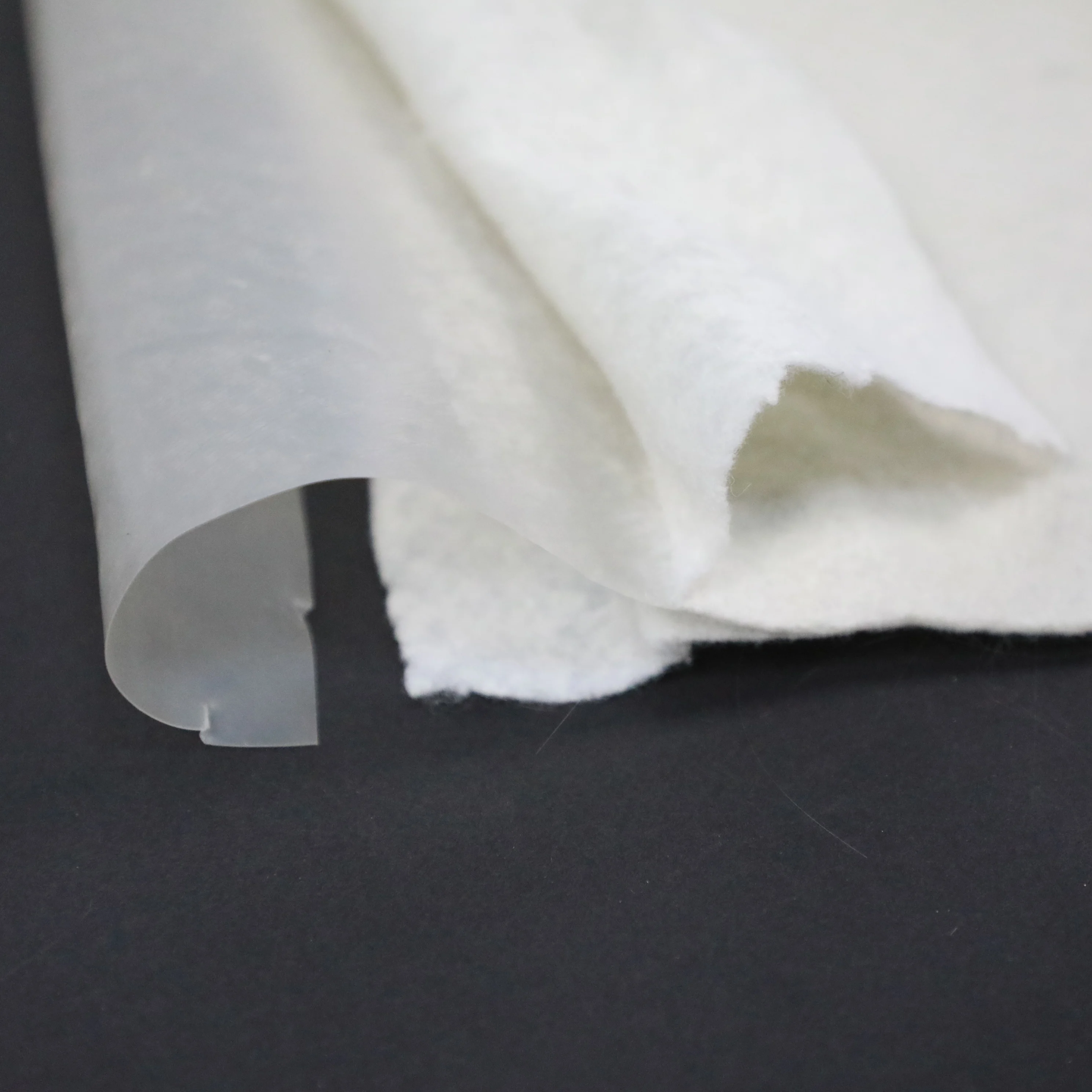

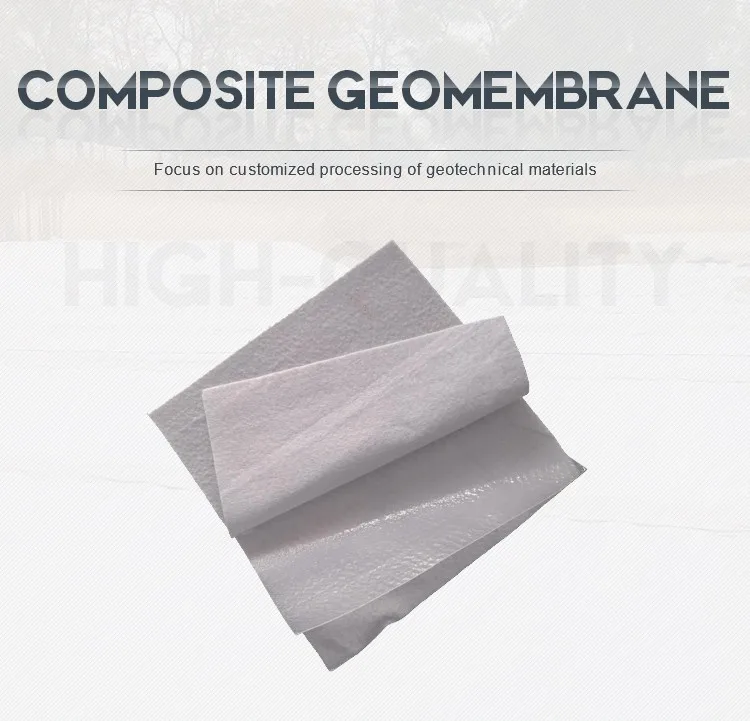

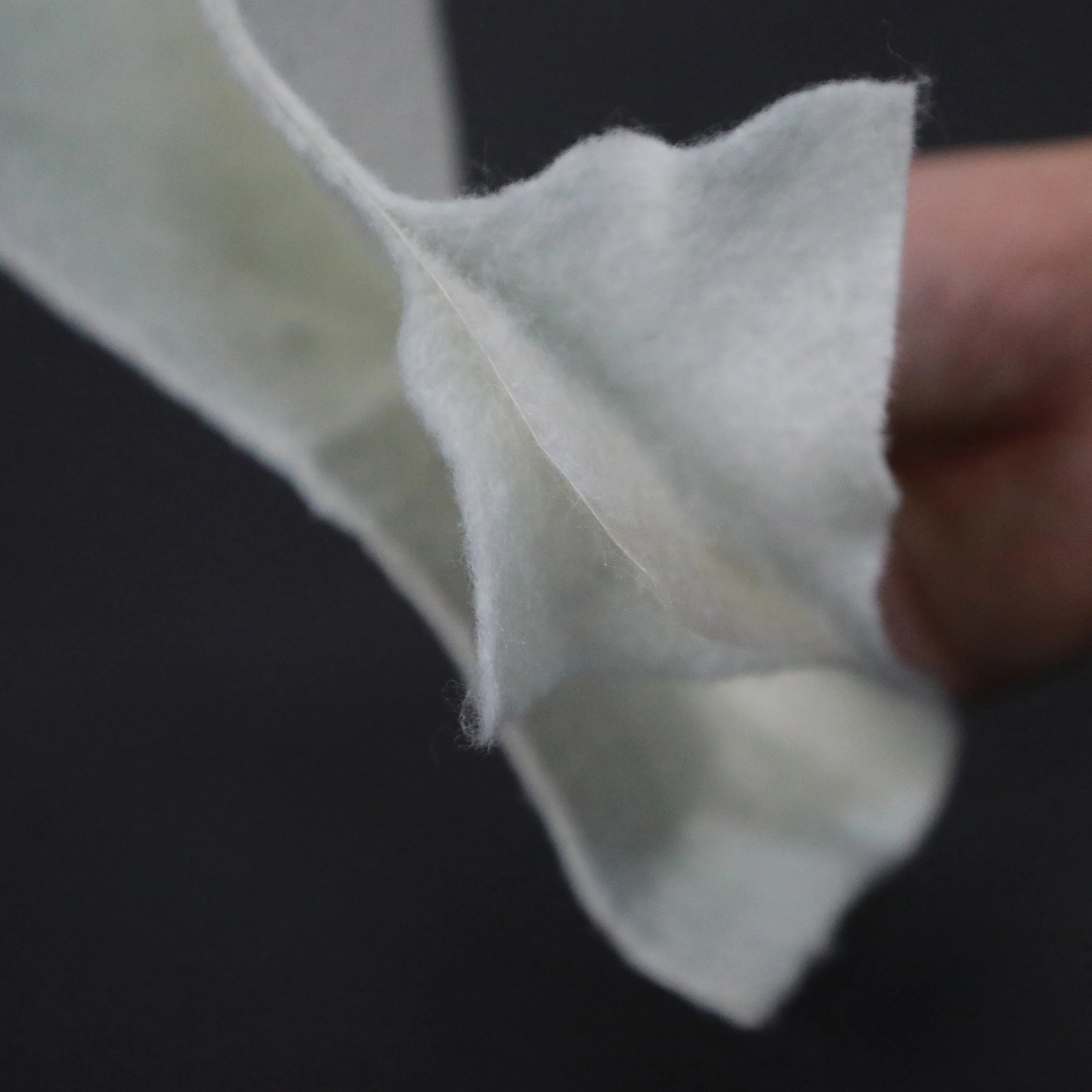

Composite geomembrane is an impermeable material made by laminating geotextile and geomembrane through advanced composite technology. It comes in various structures, including one textile–one membrane, two textiles–one membrane, and even multi-layer combinations.
This material is widely used in drainage, separation, and reinforcement applications. It features excellent impermeability, strong tensile and tear resistance, high puncture and bursting strength, and outstanding acid and alkali resistance. Composite geomembrane is primarily used for waterproofing in civil engineering, such as landfills, reservoirs, tunnels, dams, and irrigation projects.
Product Specification
| Composite geomembrane | |||||||
| item | Specification | ||||||
| Unit area weight(g/m2) | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness(mm ≥) | 0.25-0.35 | 0.3-0.5 | |||||
| Breaking strength(KN/M≥) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 |
| CBR Bursting strength(KN≥) | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 |
| Tear strength(KN≥) | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 |
Product Introduction
Product Details
Technical Standards
Including:
1.One layer geotextile and one layer membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane:0.1mm-1.5mm .
2.Two layers geotextile and one layer membrane ; Weight of base geotextile : 80g/m2-600gm2 ; Thickness of geomembrane :0.2mm-1.5mm
3.One layer geotextile and two layers membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane:0.1mm-0.8mm .
4.Multi-layers : Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-1.5mm .
5.Width : 1m-8m
6.Length : 50m-100m
| Composite geomembrane | |||||||
| item | Specification | ||||||
| Unit area weight（g/㎡） | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness（mm ≥） | 0.25-0.35 | 0.3-0.5 | |||||
| Breaking strength（KN/M≥） | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 |
| CBR Bursting strength（KN≥） | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 |
| Tear strength（KN≥） | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 |
Q：Can you send samples?
A：Yes，we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan.It is a professiona lmanufacturer of geomembrane，geotextile，geogrid and other products.So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A: Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management，products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
