ZL-FH-TGM
zhongloo

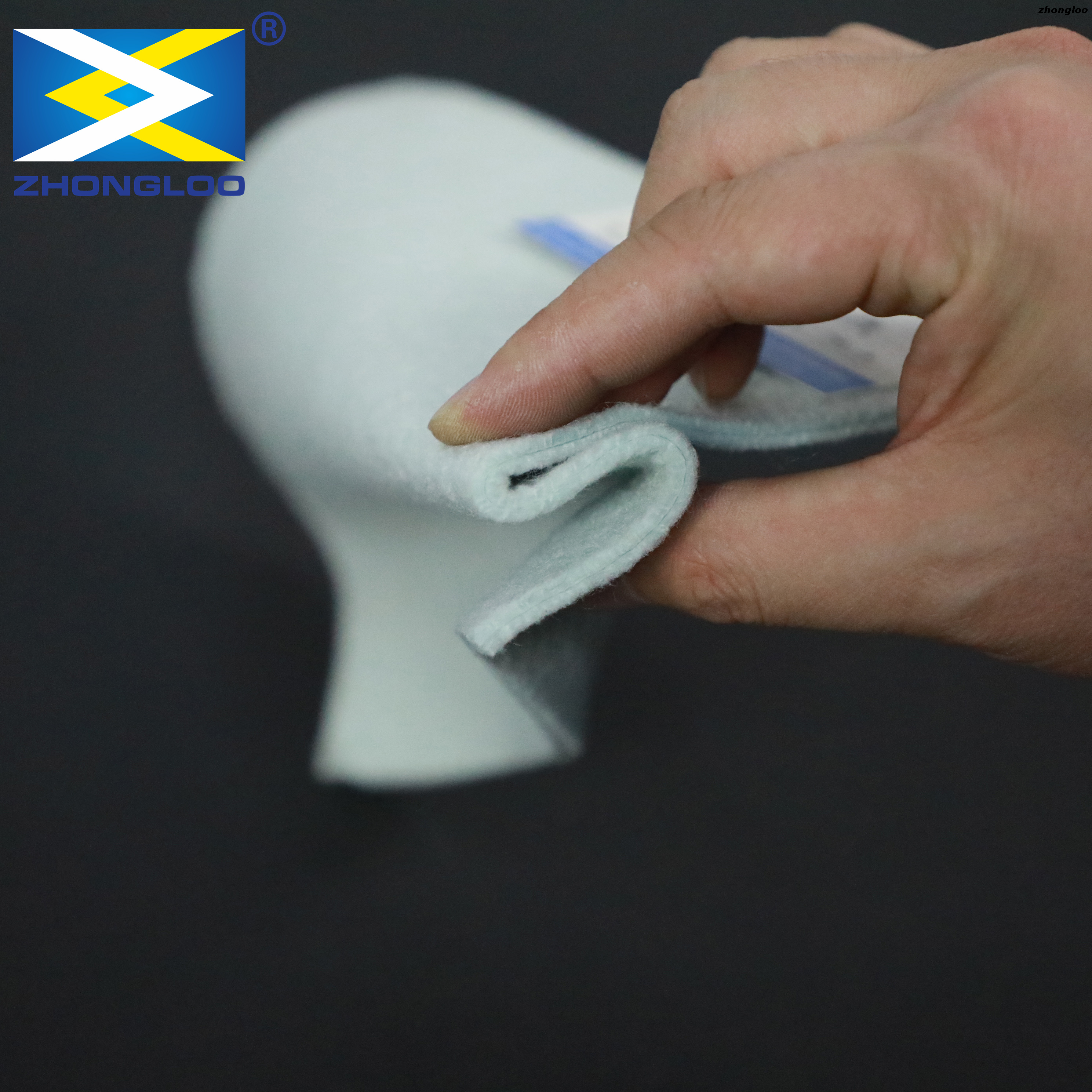

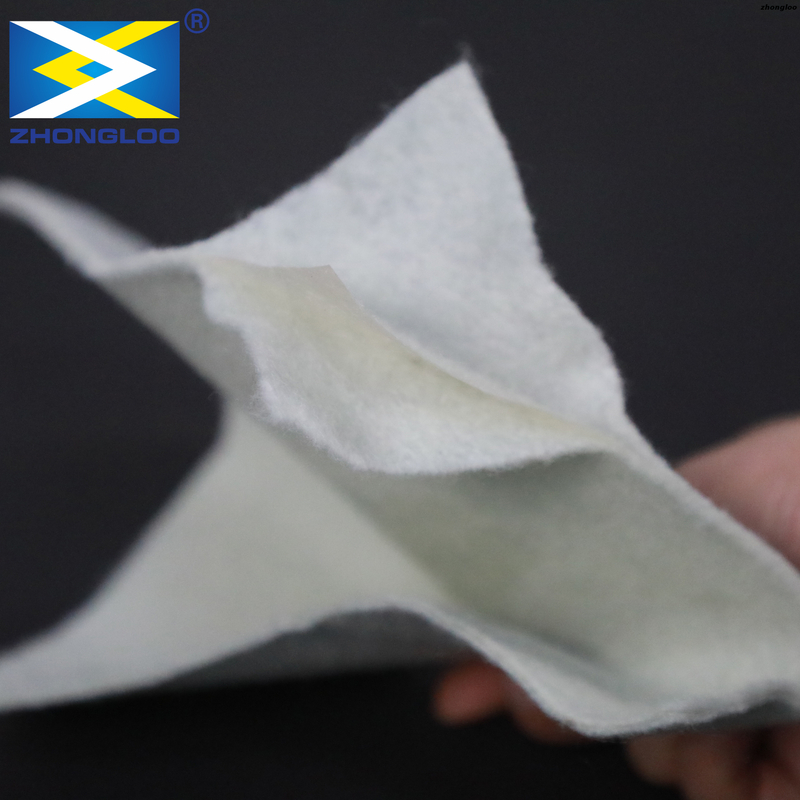

Professional Water Conservancy Engineering Waterproofing Anti-Seepage Composite Geomembrane
Composite Geomembrane is an impervious material made by laminating geotextile with geomembrane. It is available in various configurations, such as one textile one membrane, two textiles one membrane, or multiple textiles and membranes. This product is primarily used for waterproofing, drainage, and reinforcement applications.
It offers excellent performance characteristics, including:
Strong acid and alkali resistance
Superior seepage and infiltration resistance
High tensile and tear strength
Excellent bursting resistance
Composite geomembrane is widely used in water conservancy, environmental protection, municipal engineering, and other infrastructure projects where waterproofing is essential.
Product Introduction
5. High tensile strength and fracture elongation indicators, strong strain force, suitable for use in various harsh geological and climatic conditions, especially suitable for engineering in geological uneven settlement areas
Product Details
Including:
1.One layer geotextile and one layer membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane:0.1mm-1.5mm .
2.Two layers geotextile and one layer membrane ; Weight of base geotextile : 80g/m2-600gm2 ; Thickness of geomembrane :0.2mm-1.5mm
3.One layer geotextile and two layers membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane:0.1mm-0.8mm .
4.Multi-layers : Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-1.5mm .
5.Width : 1m-8m
6.Length : 50m-100m
| Composite geomembrane | |||||||
| item | Specification | ||||||
| Unit area weight（g/㎡） | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Thickness（mm ≥） | 0.25-0.35 | 0.3-0.5 | |||||
| Breaking strength（KN/M≥） | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 |
| CBR Bursting strength（KN≥） | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 |
| Tear strength（KN≥） | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 |
Q：Can you send samples?
A：Yes，we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan.It is a professiona lmanufacturer of geomembrane，geotextile，geogrid and other products.So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A: Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management，products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
