1. Corrosion resistance
2. good water resistance
3. Long lasting
4. Specifications can be customized
| Color: | |
|---|---|
| Model Number: | |
| Thickness: | |
| Width: | |
| Length: | |
| Package: | |
| Standard: | |
| Quantity: | |
geomembrane
zhongloo
geomembrane

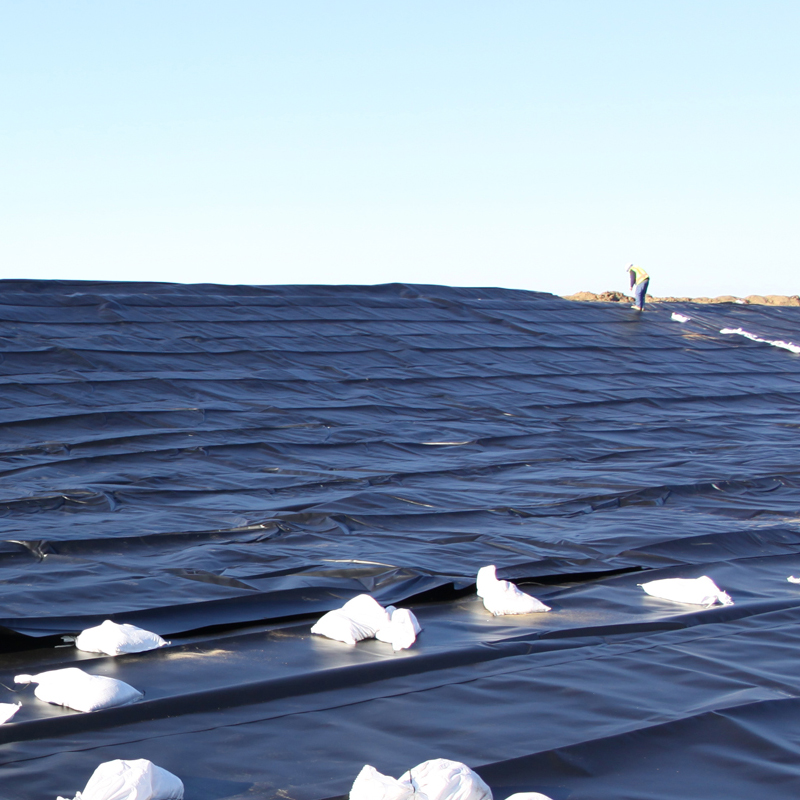

100% Virgin Anti-Seepage Waterproof Smooth Textured HDPE Geomembrane for Landfill Mining Dam Water Lake
| HDPE Geomembrane Technical Parameter (GB standard) | |||||||
| Spec Properties | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
| Tensile Properties (each direction) (≥) .yield strength .break strength .yield elongation .break elongation | 7KN/m 10KN/m -- 600% | 10KN/m 15KN/m -- 600% | 13KN/m 20KN/m 11% 600% | 16KN/m 25KN/m 11% 600% | 20KN/m 30KN/m 11% 600% | 26KN/m 40KN/m 11% 600% | 33KN/m 50KN/m 11% 600% |
| Density(≥) | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc |
| Puncture Restistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
| Carbon Black Content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon black Dispersion | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) |
| Tear Resistance (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
| Oxidative Induction Time(OIT) Standare OIT(≥) | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. | 60min. |
Products Advantages
1. Good physical and mechanic performance2.
2.High tearing resistance, strong deformation adaptability
3. Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4. Good adaptability to high and low temperature, non-toxicity, long service life
5.Good waterproof, drainage, anti-seepage and damp proof effects
6.Complete width and thickness specifications, low cost and easy installation.
Geomembrane is a geosynthetic material with anti-seepage, isolation, reinforcement and other functions. Its core materials are mostly high-density polyethylene (HDPE), low-density polyethylene (LDPE), PVC and other polymer materials, which are made by blow molding, calendering and other processes. Its core advantage lies in excellent anti-seepage performance, which can effectively block liquid penetration, and at the same time has certain tensile resistance, anti-aging and acid-alkali corrosion resistance.Pond Liner Price
We can meet your project requirements！
Q：Can you send samples?
A：Yes，we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company located in Hefei，Anhui Province，with are gistered capital of 52 miion yuan.It is a professiona lmanufacturer of geomembrane，geotextile，geogrid and other products.So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A:Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A:General within 3-7days after received the deposit
Q:How to control product quality?
A:Our factory adopts lean management，products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping
