Geomembrane Introduction

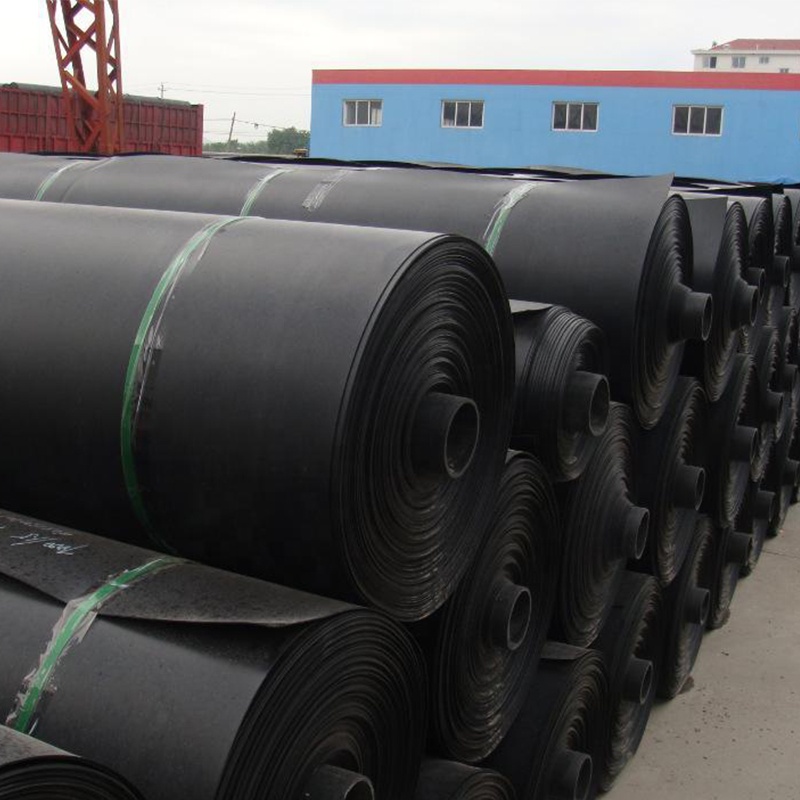

Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner.(model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.Anhui Zhonglu (www.zlgeo.com).
| Product Name | HDPE/LDPE Geomembrane |
| Material | HDPE/LDPE/LLDPE in Virgin or mixed or recycled |
| Surface | both sides smooth / both sides textured / one side smooth, the other side textured / as your request |
| Thickness | 0.1mm - 2.5mm |
| Size | Width: 1M - 8M Length: 50M - 200M (or as request) |
| Color | Black, White, Blue, Green, Grey , etc |
| MOQ | 1000sqm per thickness |
| Certificate | CE / ISO 9001 |
| Packing | In PP woven bag or as request |
| Samples | Free samples available |
| Delivery Time | about 3-7 days after received the 30% deposit |
| Delivery Terms | Ocean Shipping |
| Payment Terms | TT 30% as deposit, 70% balance payment at sight of BL copy or LC at sight |
Geomembrane Parameter
| Thickness | 0.75 | 1.0 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
| Density g/m2 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 | ≥0.94 |
| Tensile yield strength (N/mm) | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Tensile breaking strength (N/mm) | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Bongation at yield(%) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Elongation at break(%) | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 | ≥700 |
| Tear resistance(N) | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Puncture strength(N) | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |
| Tensile load stress cracking | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 | ≥300 |
| Carbon black content(%) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
Geomembrane Feature
1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation
Welidng Machine

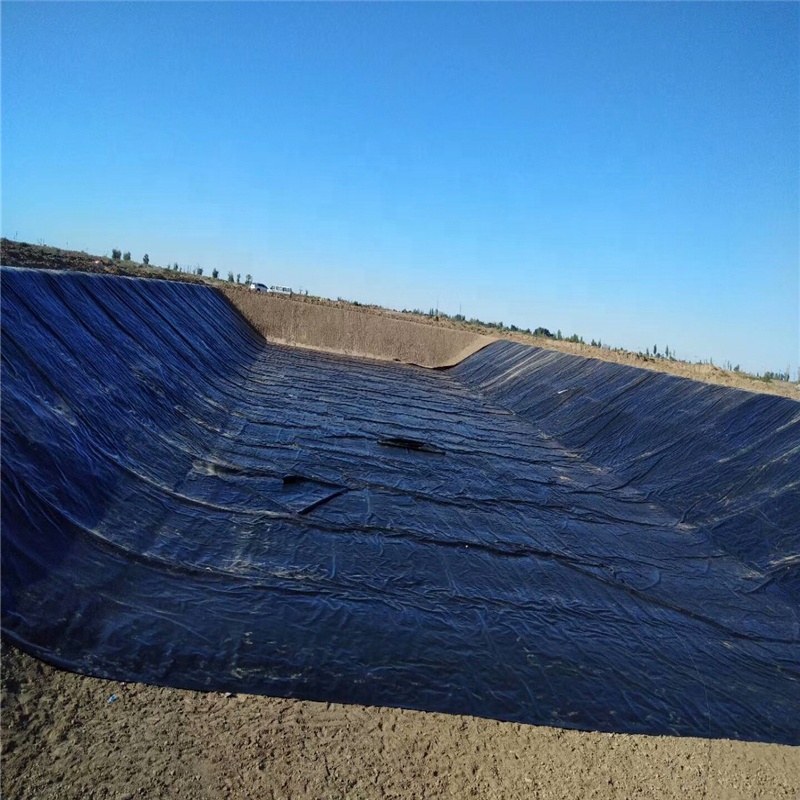

1. Environmental Protection and sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial and hospital solid waste, etc;
2. Water conservancy projects: such as seepage prevention, plugging, reinforcement, Canal seepage prevention, vertical core wall, slope protection, etc. of Rivers and Lakes reservoir dams;
3. Municipal Engineering: Subway, building underground engineering, planted roof, roof garden, sewage pipe anti-seepage;
4. Petrochemical: chemical plant, refinery, oil storage tank anti-seepage, chemical reaction tank, sedimentation tank lining, secondary lining, etc;
5. Agriculture: Reservoir, drinking water pool, storage pond, waste residue treatment field, and anti-seepage of irrigation system; 6. Aquaculture industry: intensive, factory breeding pond, fish pond, shrimp pond lining, sea water circle slope protection, etc;
7. Salt industry: Salt Field crystallization pool, halogen pool cover, Salt film, salt pool plastic film
